Screw-mount cable ties

Cable tie with eyelet drawing – Cobra
Natural nylon PA6.6 cable ties with eyelet for screw fixing – Cobra Cieffeplast
Natural nylon PA6.6 cable ties with eyelet for screw fixing – Cobra Cieffeplast
Natural nylon PA6.6 cable ties with eyelet for screw fixing to walls – Cobra Cieffeplast
Cable tie with eyelet fixed with screw on panel – Cobra Cieffeplast

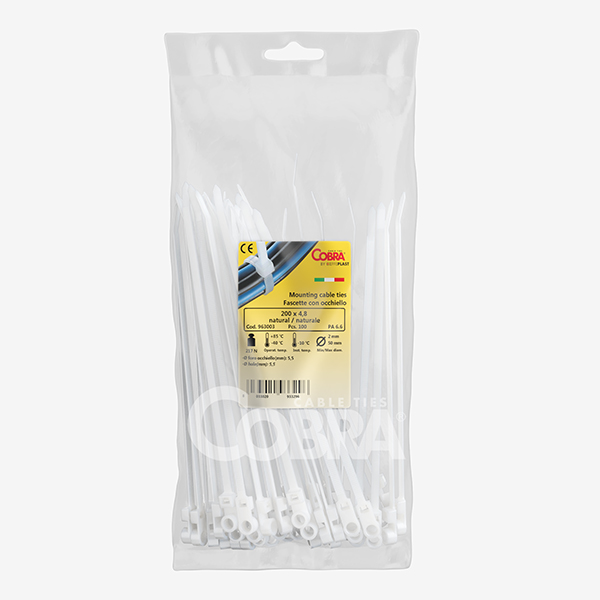

Pack of 100 screw-mount eyelet cable ties – Cobra
Small Cobra Packaging – Cieffeplast

Screw-mount cable ties

1,00€

Cable tie with eyelet drawing – Cobra

Wiring cable ties made of PA6.6, natural and black color, are suggested for screw fixing on any kind of support, as a panel. Ideal for switchboards, temporary fixing and special wirings.
The hooking system between the pawl and the rack permits the fixing of various diameters.
In case of a non manual installation, please make sure your tool is regulated for a stress in proportion to the size of the cable tie.

Contact us
SKU: N/A Category:
Code Description Size (mm) Max. bundle Ø (mm) Guaranteed min. tensile strenght (kg) Bag Pcs. Box Qty Colour
963001 MOUNTING CABLE TIES 100 x 2,5 22 8,1 100 5.000 NATURAL
963002 MOUNTING CABLE TIES 150 x 3,6 32 18,2 100 5.000 NATURAL
963003 MOUNTING CABLE TIES 200 x 4,8 50 22,2 100 4.000 NATURAL
963004 MOUNTING CABLE TIES 300 x 4,8 76 22,2 100 3.000 NATURAL
963005 MOUNTING CABLE TIES 370 x 4,8 102 22,2 100 2.000 NATURAL
963006 MOUNTING CABLE TIES 200 x 7,6 50 54,4 100 2.000 NATURAL
963007 MOUNTING CABLE TIES 300 x 7,6 76 54,4 100 2.000 NATURAL
963008 MOUNTING CABLE TIES 375 x 7,6 98 54,4 100 2.000 NATURAL
Code Description Size (mm) Max. bundle Ø (mm) Guaranteed min. tensile strenght (kg) Bag Pcs. Box Qty Colour
963101 MOUNTING CABLE TIES 100 x 2,5 22 8,1 100 5.000 BLACK
963102 MOUNTING CABLE TIES 150 x 3,6 32 18,2 100 5.000 BLACK
963103 MOUNTING CABLE TIES 200 x 4,8 50 22,2 100 4.000 BLACK
963104 MOUNTING CABLE TIES 300 x 4,8 76 22,2 100 3.000 BLACK
963105 MOUNTING CABLE TIES 370 x 4,8 102 22,2 100 2.000 BLACK
963106 MOUNTING CABLE TIES 200 x 7,6 50 54,4 100 2.000 BLACK
963107 MOUNTING CABLE TIES 300 x 7,6 76 54,4 100 2.000 BLACK
963108 MOUNTING CABLE TIES 375 x 7,6 98 54,4 100 2.000 BLACK

Cobra® Screw-Mount Cable Ties PA6.6, Eyelet Cable Ties for Screw Fixing

Cobra® screw-mount cable ties (also called eyelet cable ties or cable ties with mounting hole) feature an integrated eyelet through the head, allowing the cable bundle to be fixed to any flat surface using a standard screw or bolt. The correct solution when a removable, repositionable, or load-bearing cable mount is required.
Hole dimensions for screw insertion: 3.2, 4.2, 5.5, 5.7, 6.3 mm.
Available in natural. PA6.6 nylon construction. Operating temperature: −40°C to +85°C. Flame rated UL 94 V-2. CE compliant.
B2B supply to electrical contractors, panel builders, industrial equipment manufacturers, and electrical wholesalers across Europe and globally.

Screw-Mount Cable Ties, Eyelet Cable Ties for Fixed Surface Mounting

Cobra® screw-mount cable ties add a circular eyelet to the cable tie head. The eyelet accepts a standard screw or bolt, allowing the cable bundle to be permanently and robustly fixed to a back plate, structural member, duct, or any flat surface. Unlike adhesive-backed cable tie mounts, screw-fixed eyelets are appropriate for high-vibration environments, heavy cable bundles, and surfaces where adhesive anchoring is unreliable.

Eyelet Cable Ties

Screw-mount cable ties are the correct choice when: load-bearing capacity is required, the surface is unsuitable for adhesive (powder-coated, galvanised, or rough), the installation will be in a vibration or high-temperature environment, or the mounting point must be accessible for future repositioning.
HOW TO USE: SCREW-MOUNT EYELET INSTALLATION
Align the integrated eyelet with the pilot hole and secure it to the panel or substrate using a screw or bolt. Once the anchor is fixed, wrap the tie around the cable bundle and thread the tail through the head to engage the precision locking system. Pull until the bundle is secure, using a tensioning tool for a professional finish and a clean, flush cut ( 8504, 8513, 8534) .  Hole diameters for screw : 3.2 mm / 4.2 mm / 5.5 mm / 5.7 mm / 6.3 mm.

Technical Specifications

Material Polyamide 6.6 (PA6.6) — first-class
Also known as Eyelet cable ties, screw-fix cable ties, mounting hole cable ties, looking clamp ties
Mounting type Integrated eyelet for screw or bolt fixing
Colour Natural
Operating temperature −40°C to +85°C
Compliance CE European Norms
Brand Cobra® by Cieffeplast

Applications

  • Electrical panel building: back plate cable routing with screw-fixed tie points
  • Industrial machinery: cable harness anchoring in high-vibration environments
  • Building services and HVAC: cable fixing to structural steel and concrete surfaces
  • Marine and transport: robust cable routing on metal surfaces unsuitable for adhesive
  • Outdoor infrastructure: cable management on galvanised or powder-coated frames
