Installation Cable Ties PA6.6 – Single and Double Head

Cobra® Installation Cable Ties PA6.6

Cobra® PA6.6 Low-Profile Cable Ties are characterized by a flat head design with parallel entry. Engineered for heavy-duty applications, these in-line cable ties feature a robust 9 mm width and are available in multiple lengths to suit various bundle sizes.
For maximum performance, the shorter version is equipped with a single-locking head, while all other lengths feature a double-locking system to ensure superior tensile strength and security under high mechanical stress.
B2B supply to panel builders, automotive OEMs, electrical wholesalers, and industrial equipment manufacturers across Europe and globally.
Also known as: black installation cable ties, flat-head cable ties, outdoor nylon cable ties PA66, are compatible with installation with wall plug item code 9771
Tool-free installation: the coupling insert engages directly without the need for a tensioning plier, making these ties suitable for rapid on-site assembly. Use of tool code 8523 or 8543 is however recommended for consistent, calibrated tensile force in professional installations.

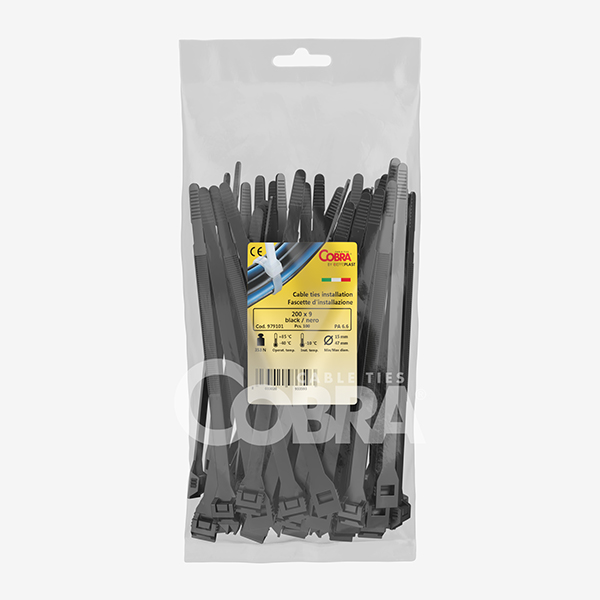

Single-locking head (200×9 mm): minimum tensile strength 36 kg.
Double-locking head (290×9 mm up to 760×9 mm): minimum tensile strength 55 kg.
Material: Polyamide 6.6 (PA6.6). Operating temperature: −40°C to +85°C. Flame rated UL 94 V-2. CE compliant. REACH and RoHS compliant.

Technical Specifications

Applications:
-Telecommunications and network infrastructure: securing high-density fiber and copper bundles to server racks, cable trays, and distribution frames.
-Railway, rolling stock, and heavy transport: vibration-resistant harness mounting on vehicle chassis, interior bulkheads, and under-carriage conduits.
-Outdoor construction and building maintenance: reliable fixing of power and signal lines to support structures, facade panels, and HVAC infrastructure.
-Industrial panel wiring and control cabinets: high-stability cable routing and bundling on internal backplates, switchgear frames, and mounting rails.
-Solar and photovoltaic ground installations: secure fastening of DC string cables to mounting rails and galvanized steel support structures in utility-scale arrays.
